Mountain biking with a boost.
Mountain biking with a boost.
Marin

Marin Alpine Trail E Electric Mountain Bike in Blue/Black

£4,355.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

RETURNS ONLINE

For items purchased online, you can send them back for a full refund within 28 days, provided it has not been used or fitted, and is returned with any packaging that form part of the goods with a valid proof of purchase.

If your item is faulty, please complete and include the returns formwith your goods when sending it back to us. Please retain your proof of postage as we will need that to reimburse you the cost of the return for the faulty items. This will be done once the return has been processed.

Here's the return address:

Louth Cycle Centre ltd

Returns Dept,
Unit 10 - 11 Station Estate,
Newbridge Hill,
Louth,
Lincolnshire.
LN11 0JT

For yours and our safety; if your items are glassware etc, i.e something sharp, please email pictures to us and don't send anything back until we've been in contact with you.

For any returns, the original packaging and swing tickets, where applicable, need to still be in place.

Please note: Unfortunately, you can't return swimwear, underwear, pierced jewellery, personalised or bespoke items, items which deteriorate or expire rapidly, magazines, items that are sealed for hygiene reasons, computer games with the seal broken or any items that have been inseparably mixed after delivery.

RETURNS-BOUGHT IN STORE

To return your item(s) bought in store for a credit note or where possible make an exchange, visit Louth Cycle Centre within 28 days of purchase provided your item has not been used or fitted, and is returned with any packaging that form part of the goods with a valid proof of purchase. This may not be possible on special order or custom built/personalised items.

If your item is faulty, we will provide a full refund. Please provide a valid proof of purchase.

Unfortunately, you can't return swimwear, underwear, pierced jewellery, personalised or bespoke items, items which deteriorate or expire rapidly, magazines, items that are sealed for hygiene reasons, computer games with the seal broken or any items that have been inseparably mixed after delivery.

CAN I EXCHANGE AN ORDER?

You can return an online item for an exchange. Please mark size required on the returns form.

If we don’t have the item you want in stock, we will process a refund instead.

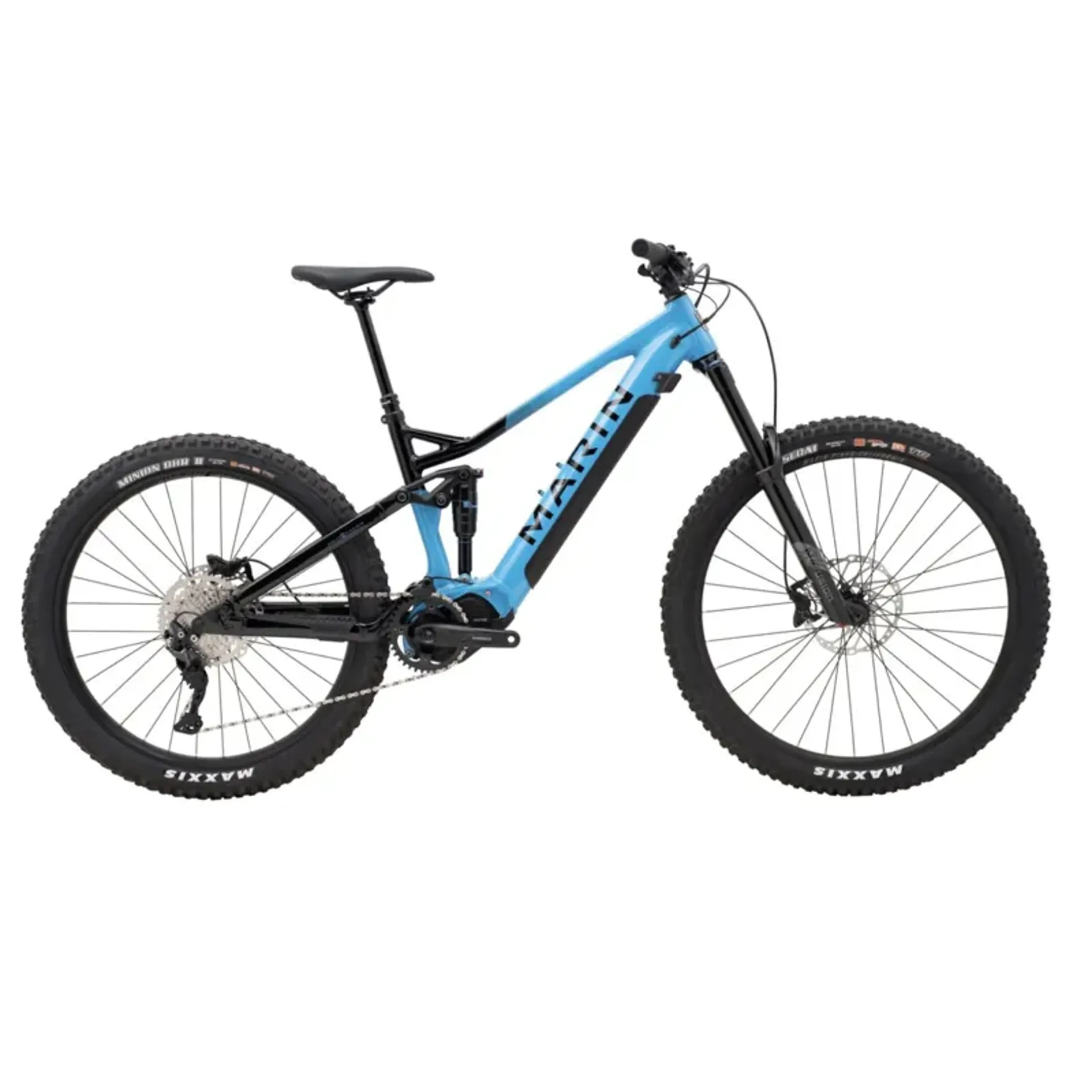

Marin Alpine Trail E Electric Mountain Bike in Blue/Black

Season:2024

Brand:Marin

Code:7365490GLSBLU

Beyond capable, both up and down, in even the most challenging terrain.

Maximizing fun.

The Alpine Trail E will take you further, faster, allowing you to tackle the most aggressive trails either up or down.

Marins electric assist mountain bikes are for riders who need a boost, either to cover more distance in a shorter amount of time or to go farther or higher than they might be able to accomplish on their own. Designed from the ground up around durable Shimano motor and battery units, the 2023 Marin electric mountain bike lineup is their most capable to date.

Technical Information
  • Frame
    Series 4 Alloy Frame, 150mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
  • Front Suspension
    X-Fusion Trace 36 RC, 160mm Travel, 29", 110x15mm Bolt-On Axle, 44mm Offset
  • Rear Suspension
    X-Fusion 02 PRO RXC, Compression and Rebound Adjustment, Custom Tune, 205x65 Trunnion Upper Mount, 25xM8 Lower Mount
  • Rims
    Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
  • Hub Rear
    Forged Aluminum, 148x12mm, Disc, 32H
  • Hub Front
    Forged Aluminum, 110x15mm, Disc, 32H
  • Spoke, Nipples
    14g Black Stainless Steel
  • Tires
    Front: Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible Rear: Vee Tire Co. Crown Gem, 27.5x2.8”, TACKEE Compound, Tubeless Compatible
  • Derailleur, Rear
    Shimano CUES 10-Speed
  • Shift Lever
    Shimano Deore, 10-Speed, I-Spec EV
  • Crankset
    Shimano EM600, 160mm Length, 38t Chainring
  • Motor
    Shimano Steps EP6 Drive Unit, 250W, 85Nm
  • Chain
    KMC X-10E, Silver
  • Cassette
    Shimano Deore 10-speed 11-46T
  • Brake, Front
    Shimano MT420, 4-Piston Hydraulic Disc, Metallic Pads, 203mm Rotor
  • Brake, Rear
    Shimano MT420, 4-Piston Hydraulic Disc Brake, Metallic Pads, 203mm Rotor w/ Speed Sensor
  • Brake Levers
    Shimano MT4100 Hydraulic
  • Handlebar
    Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
  • Stem
    Marin 3D Forged Alloy, 35mm
  • Grips
    Marin Grizzly Lock On
  • Headset
    FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
  • Seatpost
    TranzX, YSP18JL, 1x Remote, Size S 150mm Travel, All Other Sizes 170mm Travel, 30.9mm
  • Saddle
    Marin eMTB Saddle
  • Pedals
    Marin MTB Plastic
  • Battery
    BT-8035L, Internal 504Wh
  • Display
    SC-E600 Display
  • Switch
    SW-EN600L Left Hand Switch for Assist Mode Change
  • Extras
    Shimano CS-EM800
  • Extras
    Shimano Battery Charger EC-E6002, Shimano CS-EN800 Chainguide
