The dream ticket when discussed in the merida uk office. A gravel bike with motor assistance, allowing you to go further, tackle more and generally just grin a lot.
The dream ticket when discussed in the merida uk office. A gravel bike with motor assistance, allowing you to go further, tackle more and generally just grin a lot.
Merida

2022 Merida eSilex 400 MY22 Electric Bike in Silver

£2,399.00 £2,900.00 17% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

RETURNS ONLINE

For items purchased online, you can send them back for a full refund within 28 days, provided it has not been used or fitted, and is returned with any packaging that form part of the goods with a valid proof of purchase.

If your item is faulty, please complete and include the returns formwith your goods when sending it back to us. Please retain your proof of postage as we will need that to reimburse you the cost of the return for the faulty items. This will be done once the return has been processed.

Here's the return address:

Louth Cycle Centre ltd

Returns Dept,
Unit 10 - 11 Station Estate,
Newbridge Hill,
Louth,
Lincolnshire.
LN11 0JT

For yours and our safety; if your items are glassware etc, i.e something sharp, please email pictures to us and don't send anything back until we've been in contact with you.

For any returns, the original packaging and swing tickets, where applicable, need to still be in place.

Please note: Unfortunately, you can't return swimwear, underwear, pierced jewellery, personalised or bespoke items, items which deteriorate or expire rapidly, magazines, items that are sealed for hygiene reasons, computer games with the seal broken or any items that have been inseparably mixed after delivery.

RETURNS-BOUGHT IN STORE

To return your item(s) bought in store for a credit note or where possible make an exchange, visit Louth Cycle Centre within 28 days of purchase provided your item has not been used or fitted, and is returned with any packaging that form part of the goods with a valid proof of purchase. This may not be possible on special order or custom built/personalised items.

If your item is faulty, we will provide a full refund. Please provide a valid proof of purchase.

Unfortunately, you can't return swimwear, underwear, pierced jewellery, personalised or bespoke items, items which deteriorate or expire rapidly, magazines, items that are sealed for hygiene reasons, computer games with the seal broken or any items that have been inseparably mixed after delivery.

CAN I EXCHANGE AN ORDER?

You can return an online item for an exchange. Please mark size required on the returns form.

If we don’t have the item you want in stock, we will process a refund instead.

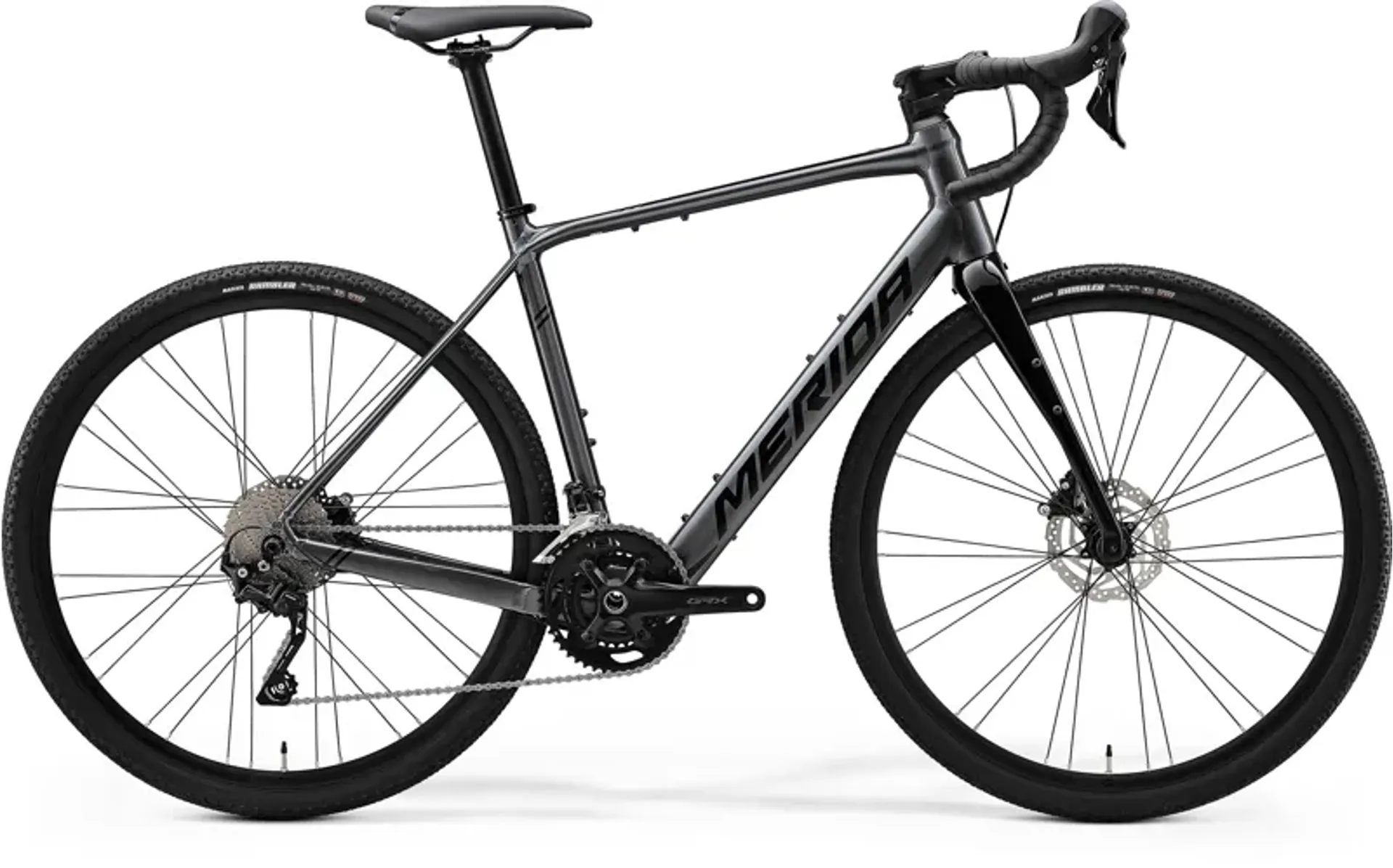

2022 Merida eSilex 400 MY22 Electric Bike in Silver

Season:2022

Brand:Merida

Code:P-N909

The dream ticket when discussed in the merida uk office. A gravel bike with motor assistance, allowing you to go further, tackle more and generally just grin a lot.

Mahle's ebikemotion system uses a 40nm rear hub motor powered by a fully integrated 250wh battery hidden in the downtube. The low system weight combined with a carbon fork and sophisticated aluminium frame means the bike also feels lively without power assistance. There is almost no drag at all from the motor when it's not engaged.

The system has an iwoc button for controlling support levels and a sophisticated app provides an opportunity to adjust the riding feel as well as offering post-ride analysis features.

The frame has mounts for mudguards and rack and a neat hidden kickstand mount. Cable routing is through the frame with cables entering through a specific headset cap to keep the cockpit neat. The esilex can be run with either 700c or 650b wheels.
Technical Information
  • Frame
    Lite - Hydroformed 6066 triple butted aluminium, integrated battery, mounts for mudguards, rack and kickstand. 9mm QR axle standard, BSA BB standard. Max. tyre size 700 x 45c without mudguards, 700 x 42c with mudguards. Max 27.5 x 47c
  • Fork
    Merida Silex CF2; Tapered; carbon, Max. tyre size: 700 x 42c without mudguards, 700 x 35c with Mudguards. Max 27.5 x 50c
  • Headset
    VP-MH-P16
  • Stem
    Merida Expert IR; aluminium; 31.8mm diameter; 5 degree rise. Stem length: 80mm (all sizes)
  • Handlebar
    Merida Expert GR; aluminium; Width: 400mm (XS-S), 420mm (M), 440mm (L/XL)
  • Grip
    Merida Expert
  • Brake Type
    Hydraulic disc
  • Brake Lever
    Shimano GRX400
  • Brake Calipers
    Front: Shimano GRX400; 2 piston hydraulic disc brake caliper with Shimano RT10; 160mm rotor Rear: Shimano GRX400; 2 piston hydraulic disc brake caliper with Shimano RT26; 160 mm rotor
  • Tyres
    Front: Maxxis Rambler 700 x 40c; Kevlar bead, folding; EXO Rear: Maxxis Rambler 700 x 40c; Kevlar bead, folding; EXO
  • Wheel Size
    700c
  • Wheels
    Rims: Merida Comp SL; 17mm inner rim width; 22mm depth; Aluminium Spokes: Black stainless Front Hub: VP CLK170F; 100x12mm; 32 spokes; Center lock Rear Hub: MAHLE X35+ Hub motor; 40Nm
  • Speeds
    20
  • Front Derailleur
    Shimano GRX400
  • Rear Derailleur
    Shimano GRX400
  • Shift Levers
    Shimano GRX400
  • Chain
    KMC e10s
  • Cassette
    Shimano CS-HG50; 11-36 teeth; 10 speed
  • Chainset
    Shimano GRX600; 46-30 tooth chainset with 170 mm-XS/S, 172,5 mm-M, 175 mm-L/XL crank
  • Bottom Bracket
    Shimano BSA
  • Pedals
    VP Components, VPE-891
  • Saddle
    Merida Comp CC; V-mount
  • Seat Post
    Merida Expert; aluminium; 30.9mm diameter; in-line
  • Motor
    MAHLE B1-D; 250Wh, MAHLE X35+ Hub motor; 40Nm
  • Battery Capacity
    250 Wh
  • eBike Display
    Colour coded iWoc power button
