Merida

eSpresso CC 400 EQ - MY24 Green/Black

£3,200.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

RETURNS ONLINE

For items purchased online, you can send them back for a full refund within 28 days, provided it has not been used or fitted, and is returned with any packaging that form part of the goods with a valid proof of purchase.

If your item is faulty, please complete and include the returns formwith your goods when sending it back to us. Please retain your proof of postage as we will need that to reimburse you the cost of the return for the faulty items. This will be done once the return has been processed.

Here's the return address:

Louth Cycle Centre ltd

Returns Dept,
Unit 10 - 11 Station Estate,
Newbridge Hill,
Louth,
Lincolnshire.
LN11 0JT

For yours and our safety; if your items are glassware etc, i.e something sharp, please email pictures to us and don't send anything back until we've been in contact with you.

For any returns, the original packaging and swing tickets, where applicable, need to still be in place.

Please note: Unfortunately, you can't return swimwear, underwear, pierced jewellery, personalised or bespoke items, items which deteriorate or expire rapidly, magazines, items that are sealed for hygiene reasons, computer games with the seal broken or any items that have been inseparably mixed after delivery.

RETURNS-BOUGHT IN STORE

To return your item(s) bought in store for a credit note or where possible make an exchange, visit Louth Cycle Centre within 28 days of purchase provided your item has not been used or fitted, and is returned with any packaging that form part of the goods with a valid proof of purchase. This may not be possible on special order or custom built/personalised items.

If your item is faulty, we will provide a full refund. Please provide a valid proof of purchase.

Unfortunately, you can't return swimwear, underwear, pierced jewellery, personalised or bespoke items, items which deteriorate or expire rapidly, magazines, items that are sealed for hygiene reasons, computer games with the seal broken or any items that have been inseparably mixed after delivery.

CAN I EXCHANGE AN ORDER?

You can return an online item for an exchange. Please mark size required on the returns form.

If we don’t have the item you want in stock, we will process a refund instead.

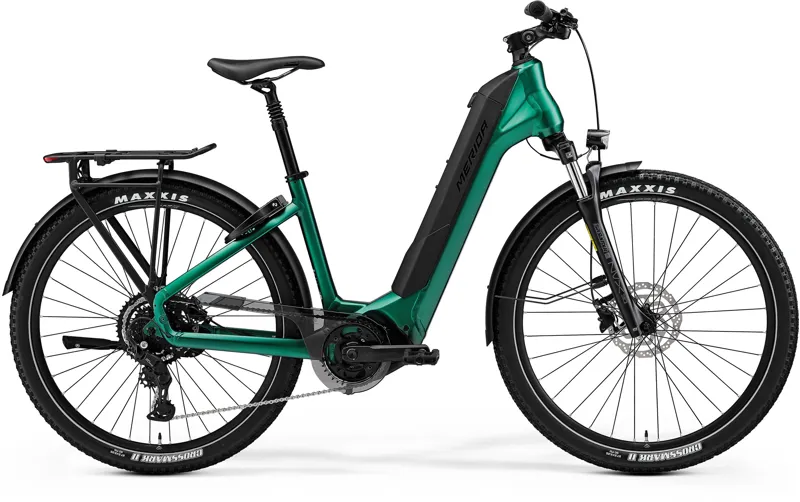

eSpresso CC 400 EQ - MY24 Green/Black

Season:2024

Brand:Merida

Code:P-P735

Highlights:
Shimano Steps EP6 85Nm motor
Internally mounted 630 Wh battery
Shimano CUES 9 -speed drivetrain
Suspension fork and seat post
Rugged 650b wheels Grippy high-volume tyres with reflective strip
Mudguards, kickstand, rack, lock and lights

Low step-through fully equipped eBike. More rugged than an eSpresso City due to wider tyres and 650b wheels. Powered by a Shimano EP6 85Nm motor with powerful 630Wh battery.

The espresso cc is the rugged sibling of the regular espresso, with wider and grippier high-volume tyres on 650b wheels. Whilst it's happy in the urban jungle thanks to standard-fit mudguards, lights, lock, rack and kickstand, it's also capable of taking trips along forest trails and gravel tracks for fun. All espresso cc models are equipped with a refined, powerful Shimano steps pedal-assist motor. Smooth, comfortable progress is assured by suspension forks and powerful hydraulic disc brakes allowing effortless, controlled braking. All electric bikes have an approved rider and equipment weight of up to 150 kg, meaning there's plenty of capacity for you and your luggage
Technical Information
SPECIFICATION
FRAME
CC Lite III Hydroformed 6066 triple butted aluminium. Tapered head tube. 135 x 9mm axle standard. Cables routed internally via Smart Entry to hold them neatly and silent. Max. tyre size 27.5" x 2.25"
MOTOR
Shimano Steps EP6; 85Nm
BATTERY
Shimano EN805-L; 504Wh internal battery
BATTERY CAPACITY
504Wh
EBIKE DISPLAY
Shimano SC-EN500
CHARGER
Shimano EC-E6002; 2A Charging current
POWER BUTTON
CAP-045A, Merida Power Button
FORK
Suntour NVX30 DS; Coil; 80mm travel; Max. tyre size 27.5" x 2.4"
GEARS
9
SHIFTERS
Shimano CUES U4000
REAR DERAILLEUR
Shimano CUES U4000
BOTTOM BRACKET
Part of Shimano Steps motor
CHAIN
Shimano LG500
CHAINSET
Samox NWP203; 38 tooth chainset with Merida Expert TK; 165mm length crank all sizes with Sunnywheel SW-CG-173A chainguard
CASSETTE
Shimano LG300; 11-46 teeth; 9 speed
BRAKE LEVER
Shimano MT200
FRONT BRAKE
Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RT10 180mm rotor
REAR BRAKE
Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RTEM300 180mm rotor
GRIP
Merida Expert TK
HANDLEBAR
Merida Expert; aluminium; 660mm wide; 15mm rise
STEM
Merida Expert CT; aluminium; 31.8mm diameter; adjustable; length: 90mm all sizes
HEAD SET
Merida-8254
PEDAL
VP Components - VPE-891
SADDLE
Merida Expert TK II; V-mount
SEAT POST
JD-SP79; 30.9mm diameter; 15mm lay back; 40mm suspension travel
WHEEL SIZE
27.5"
RIMS
Merida Comp TK; 20mm inner rim width; aluminium
SPOKES
Black stainless
FRONT HUB
Shimano QC300; 100 x 9mm; 32 spokes; Centerlock
REAR HUB
Shimano QC300; 135 x 9mm; 36 spokes; Centerlock
FRONT TYRE
Maxxis Crossmark II; 27.5" x 2.25"; wire bead with reflective strip
REAR TYRE
Maxxis Crossmark II; 27.5" x 2.25"; wire bead with reflective strip
COLOUR
Green/Black
SEASON
2024
FRONT LIGHT
Hermans H-Black MR4 E, LED front light - 120 Lumens
REAR LIGHT
Spanninga Commuter Glow XE integrated rear light
OTHER
Complete with: Mudguards, kickstand, Abus frame lock and Merida MIK HD Carrier with Spring clip, elastic strap & Spanninga rear light.
