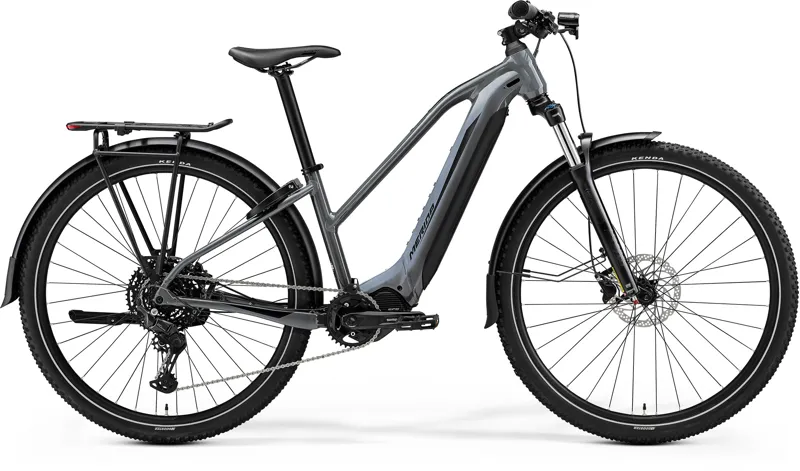

eBig Tour 400 - MY24 Grey/Black

Season:2024

Brand:Merida

Code:P-P875

Highlights:
Shimano Steps EP6 85Nm motor
Shimano 630Wh internal battery
Shimano CUES 10 speed
Shimano Hydraulic disc brakes
Equipped with mudguards, rack and lights

Versatile hardtail eMTB with 85Nm Shimano Steps EP6 motor and 630Wh battery, Equipped with mudguards and rack for all year practicality. 10 gears, Suntour XCM34 fork and hydraulic disc brakes.

The cycling equivalent of an SUV; stylish and practical. 29” wheels make for effortless cycling. The fast and grippy 2.2” Kenda Booster tyres fit neatly inside the mudguards for year round practicality. The bent top tube provides a really low standover height for easy mounting and dismounting and a more confident ride. Some of the technical features and thinking from the award winning Merida eOne-Sixty make an appearance, including the satellite charging socket, a double compound battery compartment cover and a neat bottle boss system incorporating tidy cable routing. The list of well thought through details include tyres with reflective strips, a rack with an integrated rear light, a Leyzyne front light, an integrated lock and a kick stand.
Technical Information
SPECIFICATION
FRAME
Lite IV - Hydroformed 6066 aluminium, integrated battery, internal cable routing, Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Mounts for mudguards and kickstand. Max. tyre size 29"x2.25" with mudguards, 29"x2.35" without
MOTOR
Shimano Steps EP6; 85Nm
BATTERY
Shimano EN806; 630Wh internal battery
BATTERY CAPACITY
630Wh
EBIKE DISPLAY
Shimano SC-EN500
CHARGER
Shimano EC-E6002; 2A Charging current
POWER BUTTON
CAP-045, Merida Power Button
FORK
Suntour XCM34-Boost LOR DS; 100mm travel; Tapered; 51mm fork offset; Max. tyre size 29" x 2.4"
GEARS
10
SHIFTERS
Shimano CUES U6000
REAR DERAILLEUR
Shimano CUES U6000; GS
BOTTOM BRACKET
Part of Shimano Steps motor
CHAIN
Shimano LG500
CHAINSET
Shimano CRE70-B; 34 tooth chainset with Shimano FC-EM600; 165mm length crank all sizes with Mr. Control CH-E8 mini chainguide
CASSETTE
Shimano LG300; 11-48 teeth; 10 speed
BRAKE LEVER
Shimano MT200
FRONT BRAKE
Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RT30 180mm rotor
REAR BRAKE
Shimano MT200 2 piston hydraulic disc brake caliper with Shimano RTEM300 180mm rotor
GRIP
Merida Expert TK
HANDLEBAR
Merida Expert CC; aluminium; 720mm wide; 10mm rise
STEM
Merida Expert CT; aluminium; 31.8mm diameter; adjustable; length: 90mm all sizes
HEAD SET
Merida-8155 (for steerer 1-1/8"~1.5")
PEDAL
VP Components - VPE-537
SADDLE
Merida Expert TK; V-mount
SEAT POST
Merida Expert CC; aluminium; 34.9mm diameter; in-line
WHEEL SIZE
29"
RIMS
Merida Comp CC II; 25mm inner rim width; aluminium
SPOKES
Black stainless
FRONT HUB
Shimano TC500-B; 110 x 15mm; 32 spokes; Centerlock
REAR HUB
Shimano TC500-HM-B; 148 x 12mm; 36 spokes; Centerlock with Merida Expert TR axle including removable 6/4mm allen key
FRONT TYRE
Kenda Booster; 29" x 2.2"; wire bead
REAR TYRE
Kenda Booster; 29" x 2.2"; wire bead
COLOUR
Grey/Black
SEASON
2024
FRONT LIGHT
Lezyne Hecto STVZO E65 front light
REAR LIGHT
Spanninga Commuter Glow XE integrated rear light
OTHER
Complete with: mudguards, kickstand, frame lock and Merida carrier with spring clip and integrated rear light
