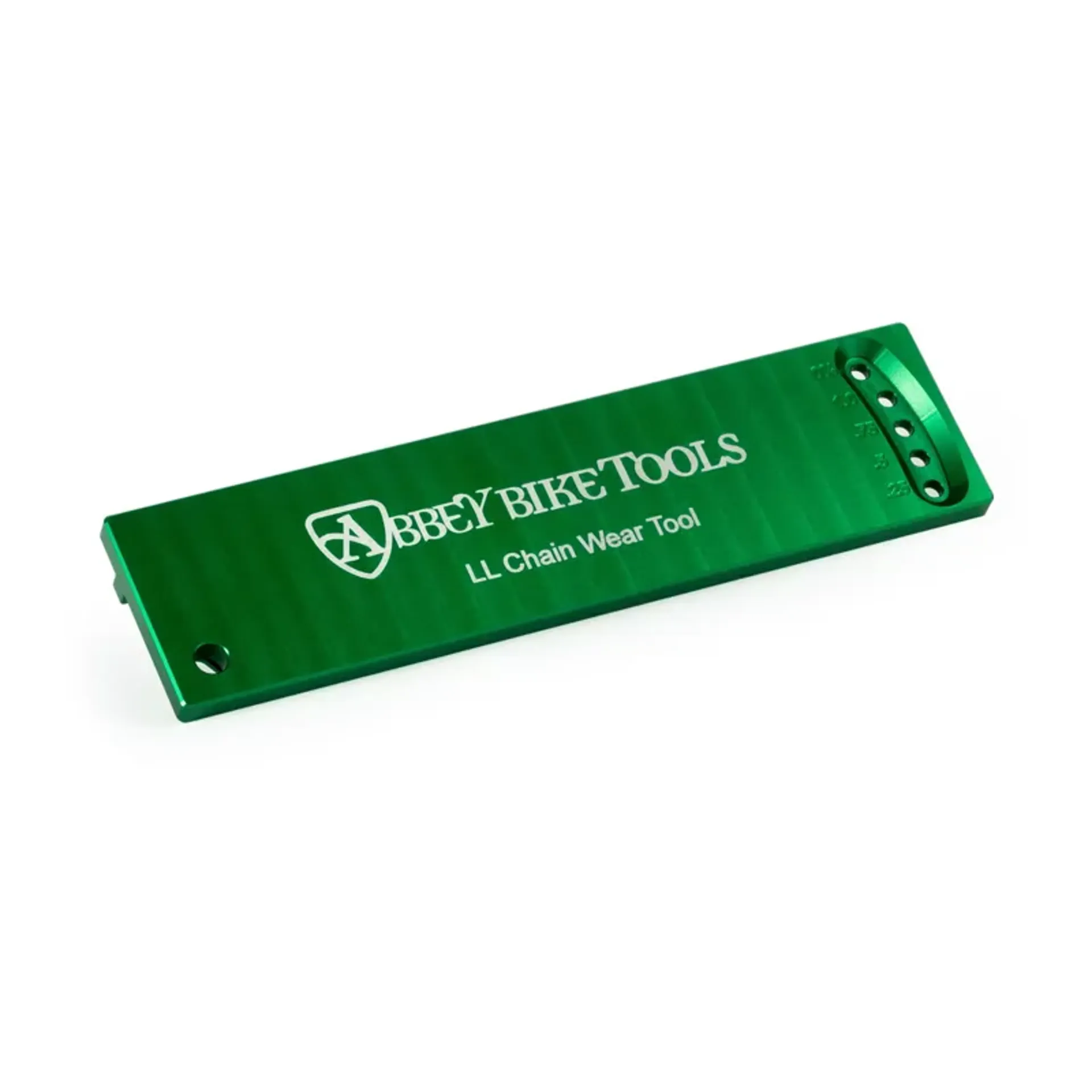

Abbey Bike Tools L.L. Chain Wear Tool

£49.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

RETURNS ONLINE

For items purchased online, you can send them back for a full refund within 28 days, provided it has not been used or fitted, and is returned with any packaging that form part of the goods with a valid proof of purchase.

If your item is faulty, please complete and include the returns formwith your goods when sending it back to us. Please retain your proof of postage as we will need that to reimburse you the cost of the return for the faulty items. This will be done once the return has been processed.

Here's the return address:

Louth Cycle Centre ltd

Returns Dept,
Unit 10 - 11 Station Estate,
Newbridge Hill,
Louth,
Lincolnshire.
LN11 0JT

For yours and our safety; if your items are glassware etc, i.e something sharp, please email pictures to us and don't send anything back until we've been in contact with you.

For any returns, the original packaging and swing tickets, where applicable, need to still be in place.

Please note: Unfortunately, you can't return swimwear, underwear, pierced jewellery, personalised or bespoke items, items which deteriorate or expire rapidly, magazines, items that are sealed for hygiene reasons, computer games with the seal broken or any items that have been inseparably mixed after delivery.

RETURNS-BOUGHT IN STORE

To return your item(s) bought in store for a credit note or where possible make an exchange, visit Louth Cycle Centre within 28 days of purchase provided your item has not been used or fitted, and is returned with any packaging that form part of the goods with a valid proof of purchase. This may not be possible on special order or custom built/personalised items.

If your item is faulty, we will provide a full refund. Please provide a valid proof of purchase.

Unfortunately, you can't return swimwear, underwear, pierced jewellery, personalised or bespoke items, items which deteriorate or expire rapidly, magazines, items that are sealed for hygiene reasons, computer games with the seal broken or any items that have been inseparably mixed after delivery.

CAN I EXCHANGE AN ORDER?

You can return an online item for an exchange. Please mark size required on the returns form.

If we don’t have the item you want in stock, we will process a refund instead.

Abbey Bike Tools L.L. Chain Wear Tool

Season:2024

Brand:Abbey Bike Tools

Code:ABCHNSTDWRPLT

The LL Chain Wear Tool – which stands for Linear and Lateral – lets you measure the wear of any chain accurately.

Without being thrown off by either the larger roller diameter of flat top chains or by the extra lateral demands cross chaining with 1x drivetrains puts on the chain.

SRAM drivetrains feature flat top chains with a roller that's .010″ (.254mm) bigger than any before it, which when measuring five links of a chain, can cause chain wear tools to under measure wear by .2%. When replacing chains with between .5% and .75% wear is standard, this margin can mean the different between replacing just the chain or the whole drivetrain if a worn chain is allowed to impact the rest of the components.

Meanwhile, cross chaining to get the full range out of 1x drivetrains will put extra wear on the faces of the rollers, over time degrading the shifting performance.

The LL Chain Wear Tool is your solution for both of these scenarios. It is machined with a V-shaped notch in which to locate the chain roller. This captures both sides of that roller, not just one, which leads to more accurate results since the measurement originates from the centre of the pin and diameter ceases to be factor. The tool is then flipped so it's easy to see where the holes line up with the pin, to measure the degree of wear from 0-2.5%.

On the other side of the tool, the lateral chain wear measurement process is clearly detailed on the surface, as is the linear measurement process.

For lateral measurement the chain must be taken off the bike, then the pin is lined up with the edge of the boss for consistency, while the chain is extended out for five links, bringing the end in line with the indicator holes marking from one to nine. It is then held vertical to see how far it sags, making it clear whether the wear is significant enough to affect shift quality, with anything below a six being unacceptable.

Over and above its special features, the LL Chain Wear Tool is fine tuned for more accuracy than the great majority of chain wear tools on the market. Most are made with a CNC laser cutter, and while high end lasers can produce parts with an acceptable tolerance, commodity level machines can double the error margin of a traditional tool to +/- .010″ (.254mm).

In line with their motto, “precision is our religion”, Abbey Bike Tools has instead machined their chain tool from a single block of 6061 aluminium in their CNC mill. It can hold tolerances as tight as .00025″ (.005mm) on critical features, so Abbey's margin of error is a scant .004%.

Features:

  • A chain wear tool that measures linear and lateral wear with outstanding accuracy
  • V-shaped notch negates impact of larger rollers, e.g. in SRAM flat top chains
  • Lateral wear can be measured to determine whether it will impact shifting accuracy
  • Process for taking both measurements is clearly denoted on tool itself
  • Tool is tuned for just a 0.004% margin of error by being CNCed from one billet inhouse
