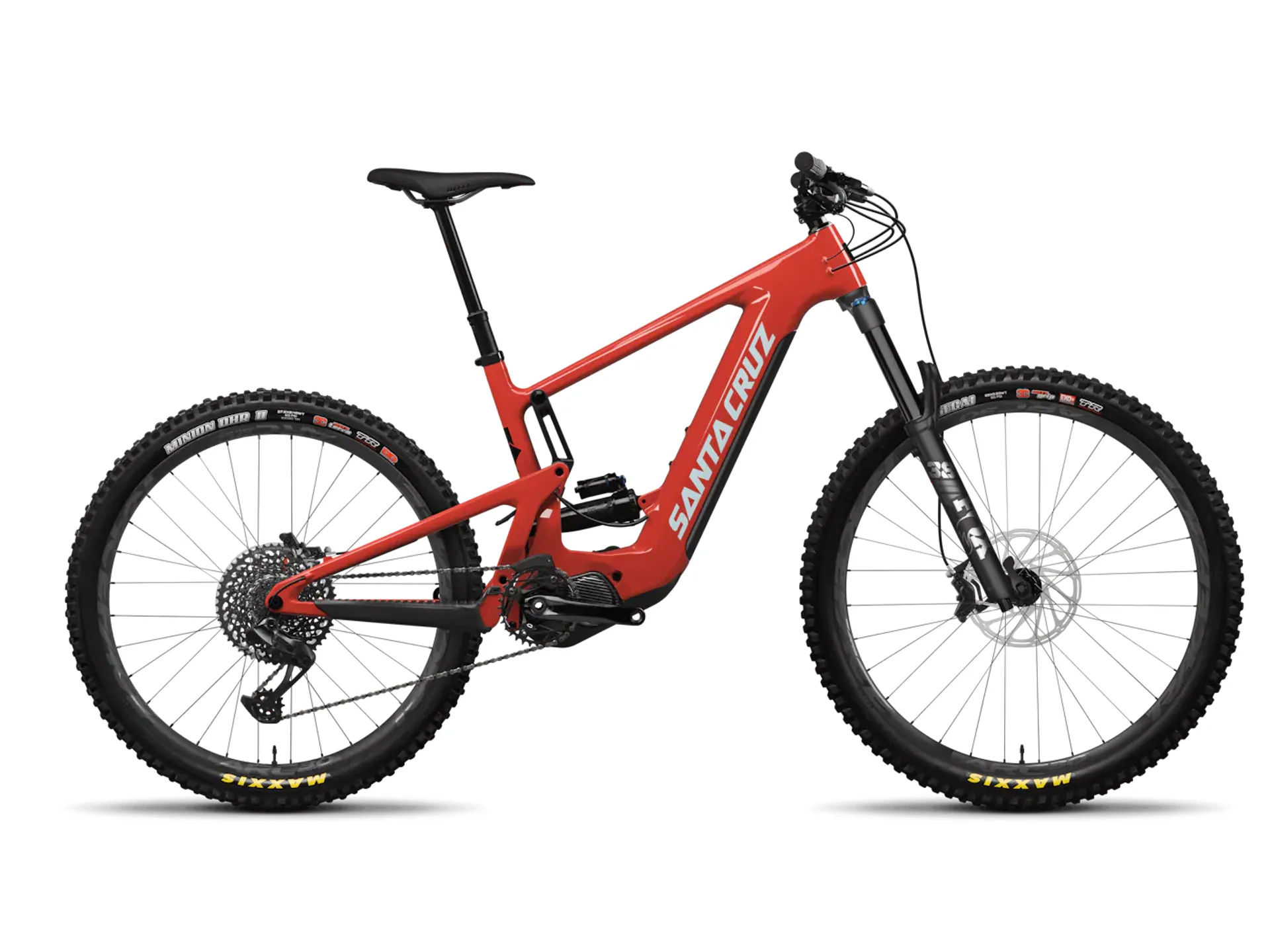

Santa Cruz Heckler - MX - Carbon - S kit - in Gloss Heirloom Red

£5,499.00 £7,399.00 26% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

RETURNS ONLINE

For items purchased online, you can send them back for a full refund within 28 days, provided it has not been used or fitted, and is returned with any packaging that form part of the goods with a valid proof of purchase.

If your item is faulty, please complete and include the returns formwith your goods when sending it back to us. Please retain your proof of postage as we will need that to reimburse you the cost of the return for the faulty items. This will be done once the return has been processed.

Here's the return address:

Louth Cycle Centre ltd

Returns Dept,
Unit 10 - 11 Station Estate,
Newbridge Hill,
Louth,
Lincolnshire.
LN11 0JT

For yours and our safety; if your items are glassware etc, i.e something sharp, please email pictures to us and don't send anything back until we've been in contact with you.

For any returns, the original packaging and swing tickets, where applicable, need to still be in place.

Please note: Unfortunately, you can't return swimwear, underwear, pierced jewellery, personalised or bespoke items, items which deteriorate or expire rapidly, magazines, items that are sealed for hygiene reasons, computer games with the seal broken or any items that have been inseparably mixed after delivery.

RETURNS-BOUGHT IN STORE

To return your item(s) bought in store for a credit note or where possible make an exchange, visit Louth Cycle Centre within 28 days of purchase provided your item has not been used or fitted, and is returned with any packaging that form part of the goods with a valid proof of purchase. This may not be possible on special order or custom built/personalised items.

If your item is faulty, we will provide a full refund. Please provide a valid proof of purchase.

Unfortunately, you can't return swimwear, underwear, pierced jewellery, personalised or bespoke items, items which deteriorate or expire rapidly, magazines, items that are sealed for hygiene reasons, computer games with the seal broken or any items that have been inseparably mixed after delivery.

CAN I EXCHANGE AN ORDER?

You can return an online item for an exchange. Please mark size required on the returns form.

If we don’t have the item you want in stock, we will process a refund instead.

Santa Cruz Heckler - MX - Carbon - S kit - in Gloss Heirloom Red

Season:2024

Brand:Santa Cruz

Code:58-24249-148-818-565101-0

Danny MacAskill just doesn't stop talking about riding ebikes. And when he's riding he goes and goes and goes. Which is partly why we've made the Heckler go further, higher and faster. The Heckler has a huge interchangeable battery (720Wh), which allows riders to access previously unreachable trails, unlock less-used trails and cramming more into less time. The 150mm rear travel (with 160mm travel fork up front) of VPP™ suspension has been tuned to tame big trails on big descents and provide glue-like traction on the climbs. The Heckler has both mixed or dual 29-inch wheel size options and a full range of frame sizes from small to XXL.

Key Features:

FrameCarbon C
Wheel Size:MX
Front Travel:160mm
Rear Travel:150mm
Drive Unit:Shimano EP801
Battery Size:720wh

Technical Information

Weight

48.92 lbs / 22.19 kg

Material

Carbon C

Travel

150mm

Wheel Size

MX

Rear Shock

RockShox Super Deluxe Select+, 210x55

Fork

FOX 38 Float Performance, 160mm -or- Fox 36 Float Performance

Rear Derailleur

SRAM GX Eagle, 12spd

Right Shifter

SRAM GX Eagle Single Click, 12spd

Cassette

SRAM XG1275 Eagle, 12spd, 10-50t

Chain

SRAM GX Eagle, 12spd

Chainguide

E13 E-Spec+ AL

Headset

Cane Creek 40 IS Integrated Headset

Rear Tire

Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, Double Down

Front Tire

Maxxis Assegai 29"x2.5", 3C, MaxxGrip, EXO+

Front Hub

E13 SL, 15x110, 6-Bolt, 32h

Front Rim

RaceFace ARC HD 30 29"

Rear Hub

E13 SL E-Spec, 12x148, XD, 6-Bolt, 32h

Rear Rim

RaceFace ARC HD 30 27.5"

Front Rotor

Avid Centerline, 200mm

Rear Rotor

Avid Centerline, 200mm

Brakes

SRAM Code R

Crankset

Shimano EM600 Crank Arms 165mm

Handlebars

Santa Cruz eCarbon

Stem

Burgtec Enduro MK3, 42mm

Saddle

WTB Silverado, CroMo

Seatpost

OneUp V2 Dropper Post, 31.6 -or- Reverb Stealth -or- Fox Transfer

Grips

Santa Cruz Bicycles House Grips

Battery

Darfon 720 Wh Integrated Battery

Drive Unit

Shimano Drive Unit DU-EP801

Sizing Information

Geometry

All units are in millimeters or degrees.

SMLXLXXL
Reach |hi/lo430/427455/452475/472495/492520/517
Stack |hi/lo607.3/609615.8/618629.4/632647.5/650665.6/668
Head Tube Angle |hi/lo64.8°/64.5°64.8°/64.5°64.8°/64.5°64.8°/64.5°64.8°/64.5°
Seat Tube Length390/390405/405430/430460/460500/500
Front Center |hi/lo760.6/761780.9/781807.3/807835.8/736869.4/869
BB Height |hi/lo346/342346/342346/342346/342346/342
BB Drop (front) |hi/lo1230/2630/2630/2630/26
BB Drop (rear) |hi/lo88/128/128/128/12
Wheelbase |hi/lo1205.6/12071225.9/12271252.3/12531280.8/12821314.4/1315
Rear Center |hi/lo445/446445/446445/446445/446445/446
Head Tube Length130/130100/100115/115135/135155/155
Top Tube Length |hi/lo571.4/572599/600623.6/625644.6/646673.5/675
Seat Tube Angle |hi/lo76.9°/76.7°76.8°/76.6°76.7°/76.4°77°/76.7°77°/76.8°
Standover Height |hi/lo720/716745/741743/740741/737741/738


Frame Sizing

If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following.

Please note, the Small frame comes with 27.5" wheels only.

The Heckler MX is available in sizes medium - extra extra large (M-XXL).

The Heckler 29 is available in sizes medium - extra extra large (M-XXL).

Personal Preference

A larger size frame will be more stable, and will give you more room to move without upsetting the weight-balance of the bike. The larger size will put the front wheel further in front of you, which gives the feeling of security and conversely, it will require more significant body movements when you WANT to shift the weight-bias of the bike. Think hard about your riding style and how active/intuitive you want it to be vs stable and speedy. You'll need to work a bit harder to muscle the larger bike around.

Body Dimension

Not all bodies at a given height are the same. If you have longer legs and a shorter torso than the average person your height, that may push you towards the smaller of the recommended sizes. If you're all torso and arms, most likely you'll want to size up.


Professional Opinion
