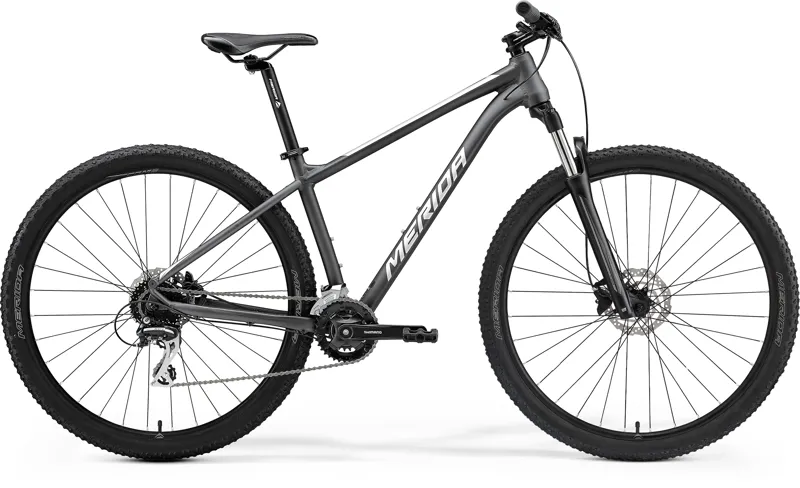

Big Nine 20 - Black/ Silver

Season:2023

Brand:Merida

Code:P-N004

Highlights:
  • Sophisticated aluminium frame
  • Tapered head tube and internal cable routing
  • Hydraulic disc brakes
  • 2 x 8 Shimano drivetrain
  • Lockout fork
  • Shimano hubs & chainset
29er hardtail with sophisticated TFS aluminium frame, 2 x 8 drivetrain, lockout fork, hydraulic disc brakes, Shimano hubs and chainset.

Merida's heartland has always been bombproof aluminium hardtails. Half a century of frame building experience counts for a lot. All Big Nine and Big Seven models use a sophisticated TFS frame featuring the latest technology: full internal cable routing for a clean, neat set up, tapered headtube offering the potential for future upgrades inboard disc brake mounts protect the brake and maximise stopping power As much Shimano componentry as possible has been added to complement the modern frame and enhance reliability. There are a wide range of sizes; Big Nine for taller riders and Big Seven for shorter riders with a healthy overlap between the two. For riders in the middle, riding style can be taken into account. If you are looking for speed and efficiency choose a Big Nine, if you are looking for agility choose a Big Seven.

Technical Information

SPECIFICATION

FRAME
  • TFS III - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake.Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 29" x 2.25"
FORK
  • Suntour XCT30 HLO; Coil; 100mm travel; lockout. Max. tyre size: 29" x 2.25"
GEARS
  • 16
SHIFTERS
  • Shimano ST-EF505
FRONT DERAILLEUR
  • Shimano FD-M315-TS
REAR DERAILLEUR
  • Shimano RD-M360
BOTTOM BRACKET
  • FSA TH-7420ST-W, Cartridge Bearing
CHAIN
  • Sunrace M84
CHAINSET
  • Shimano FC-M315-2; 36-22 tooth chainset. Crank length: 175mm (M,L,XL,XXL)
CASSETTE
  • Sunrace CSM558AU; 11-32 teeth; 8 speed
BRAKE LEVER
  • Shimano ST-EF505
FRONT BRAKE
  • Power DS-100HT; 2 piston hydraulic disc brake caliper with Shimano RT10; 160mm rotor
REAR BRAKE
  • Power DS-100HT hydraulic disc brake caliper with Shimano RT10; 160mm rotor
GRIP
  • Merida EC
HANDLEBAR
  • Merida CC; aluminium; 690mm wide; 15mm rise
STEM
  • Merida CC; aluminium; 31.8mm diameter; 6 degree rise - Stem length: 70mm (S), 80mm (M), 90mm (L), 100mm (XL), 110mm (XXL)
HEAD SET
  • Merida M2345
PEDAL
  • VP Components, VPE-891
SADDLE
  • Merida Sport comfort
SEAT POST
  • Merida CC; aluminium; 30.9mm diameter; 15mm lay back
WHEEL SIZE
  • 29"
RIMS
  • Merida CC; 17mm inner rim width; aluminium
SPOKES
  • Black steel
FRONT HUB
  • Shimano TX505; 100x9mm; 32 spokes; Center lock
REAR HUB
  • Shimano TX505; 135x9mm; 32 spokes; Center lock
FRONT TYRE
  • Merida K1080; 29" x 2.2"; wire bead
REAR TYRE
  • Merida K1080; 29" x 2.2"; wire bead
COLOUR
  • Black/Silver
