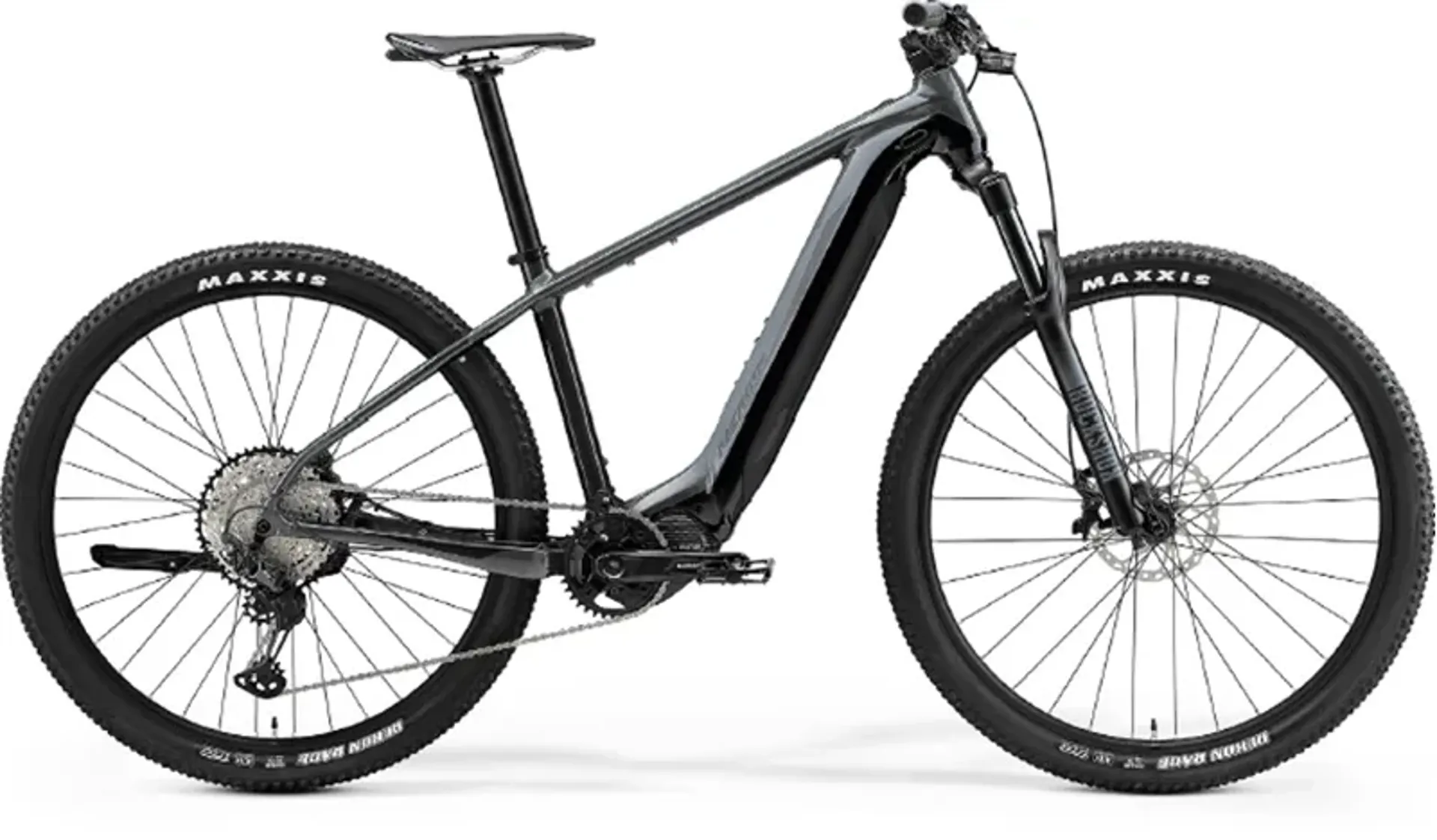

2022 Merida eBig Nine 400 MY22 Electric Bike in Grey

Season:2022

Brand:Merida

Code:P-N803

The geometry of the ebig nine follows a simple principle; as sporty as possible, as comfortable as necessary.

You ride to work in the morning but fancy a little off road detour on the way home? No problem that's what these bikes are made for! Combining the best elements of mountain and trekking bikes, this rugged machine can be fitted with mudguards and racks making it ideal for both commuting and year round leisure riding.

The ebig nine 400 is the cheapest merida ebike to use Shimano's ep8 85nm motor and 630w battery. Many technical features and much of the thinking that went into the award winning eone-sixty have been incorporated to deliver a stylish and well thought through hardtail.

The strong, stiff aluminium frame is the result of extensive hydroforming, precision laser cutting and cnc machining. The battery is housed low down in the downtube to keep the centre of gravity low. The battery can be charged in the bike via a satellite charging port.
Technical Information
  • Frame
    Lite III - Hydroformed 6066 aluminium, intergrated battery, internal cable routing, Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Mounts for mudguards and kickstand. Max. tyre size 29x2.25 with mudguards, 29x2.35 without
  • Fork
    Suntour XCM34-Boost LOR DS; 100mm; Tapered; 51mm fork offset. Max. tyre size: 29 x 2.4
  • Headset
    Merida-8157
  • Stem
    Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Stem length: 50mm (all sizes). GoPro & Supernova mount point.
  • Handlebar
    Merida Expert eTR; 760mm wide; 20mm rise
  • Grip
    Merida Expert EC
  • Brake Type
    Hydraulic disc
  • Brake Lever
    Shimano MT-200
  • Brake Calipers
    Front: Shimano BR-MT200; 2 piston hydraulic disc brake caliper with Shimano RT30; 180mm rotor Rear: Shimano BR-MT200; 2 piston hydraulic disc brake caliper with Shimano RTEM300; 180mm rotor
  • Tyres
    Front: Maxxis Ikon; 29 x 2.2; kevlar bead Rear: Maxxis Ikon 29 x 2.2; kevlar bead, folding
  • Wheel Size
    29
  • Wheels
    Rims: Merida Comp CC; 20mm inner rim width; Aluminium Spokes: Black stainless Front Hub: Shimano MT400-B; 110x15mm; 32 spokes; Center lock Rear Hub: Shimano MT400-B; 148x12mm; 36 spokes; Center lock; including removable lever with 4/6mm Allen key
  • Speeds
    10
  • Rear Derailleur
    Shimano Deore RDM5120; SGS
  • Shift Levers
    Shimano Deore M4100
  • Chain
    KMC e10s
  • Cassette
    Shimano M4100; 11-46 teeth; 10 speed
  • Chainset
    Shimano CRE70-B; 34 tooth chainring with Shimano FCEM600; 165mm length crank with Mr. Control CH-E8 mini chain device
  • Bottom Bracket
    Part of Shimano Steps motor
  • Pedals
    VP Components, VPE-537
  • Saddle
    Merida Comp SL; V-mount
  • Seat Post
    Merida Expert CC; aluminium; 34.9mm diameter; in-line
  • Motor
    Shimano E8036; 630Wh internal battery, Shimano Steps EP8; 85Nm
  • Battery Capacity
    630 Wh
  • eBike Display
    Shimano SC-E5003A
